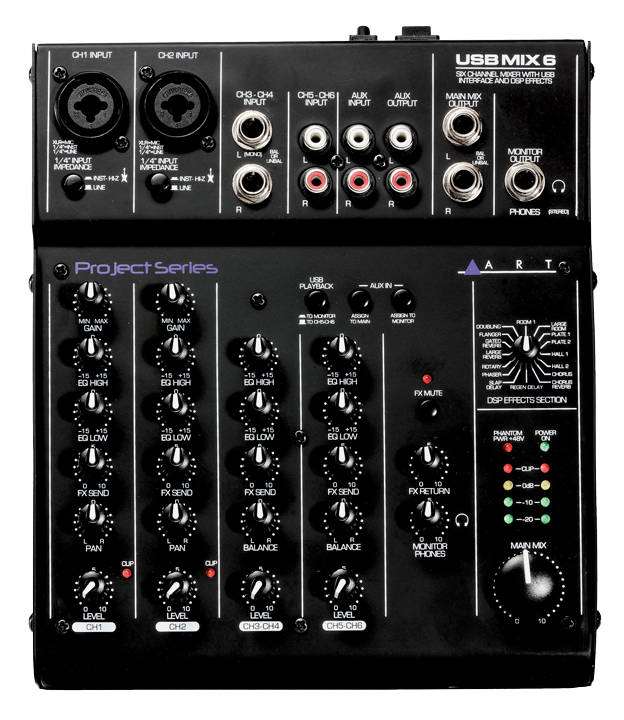

ART USBMix6 Project Mixer

Six Channel Mixer / USB Audio Interface

The ART USBMIX6 Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to a digital audio. The built-in low latency stereo digital effects add to the versatility. It can also be used as a standalone mixer through the main mix outputs. The USBMIX6 provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording. Use the USBMIX6 to record podcasts, capture your latest idea for a song, make voiceovers for your home movies, or record a jam with a friend - whenever and wherever your creativity takes you!

Details

• High Performance Low Noise Design
• Six Discrete Inputs (2 x Mic / 2 x Stereo Line Level)
• Switchable +48v Phantom Power (CH1 & CH2)
• High and Low EQ on Each Input Channel
• Integrated Stereo Multi-FX with Adjustable Sends & Returns
• Stereo LED Metering
• Independent Level Controls for Main and Headphone/Monitor Outputs
• Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
• Input Connections: XLR & 1/4-inch Balanced Combi-jack (CH 1 & CH2), 1/4-inch TRS Balanced (CH3 & CH4), RCA Unbalanced (CH5 & CH6), RCA Aux Loop In (L & R)
• Output Connections: 1/4-inch TRS Balanced Main Mix Outputs
1/4-inch TRS Stereo Output & Monitor Outputs, RCA Loop Out (L & R)
• Signal to Noise Ratio: >90dB Typical (Ref 0dBu)
• Maximum Input Level: +4dBu (Mic), +20dBu (1/4-inch Input)
• Maximum Output Level: +15dBu Main Mix Outputs
• Maximum Gain: >54dB (Mic), >39dB (Instrument), 10dB (Stereo Monitor & Line Out)
• USB Computer Interface: USB Class Compliant plug-and-play Mac / PC Interface
• Power: 15VAC @ 500mA (Adaptor Included)
• Dimensions: 1.9"H x 7.4"W x 8.5"D (47mm x 186mm x 215mm)
• Weight: 3.24 lbs (1.47 kg)
